TMS320F28335 Library  1.0
Documentation
Error #10099-D

Error-Message description

Error occurs when loading a program to Microcontroller TMS320F28335 for Debugging

error_1

How to fix this error

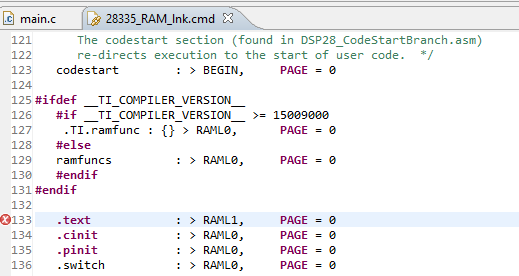

1) Open 28335_RAM_Ink.cmd and go to line where error is shown

error_2

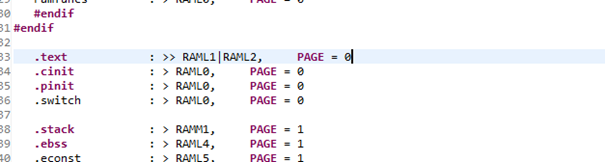

2) Change line like this

error_4

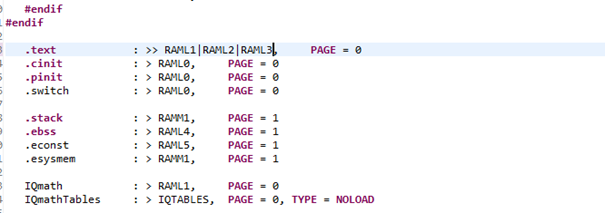

3) If error still occurs, change line like this

error_5

Now the program will be splitted and will be loaded to different RAML-blocks.
